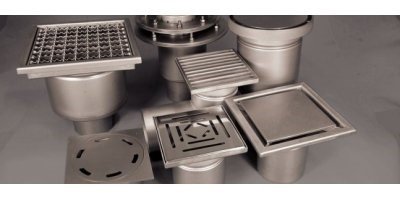

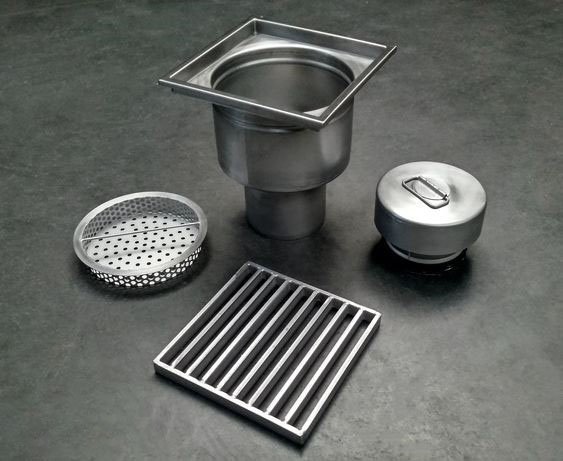

Karotek floor drains are made of AISI 304 and/or 316 quality stainless steel. They allow wastewater to be collected and transferred to the drainage pipes. Designed with HACCP standards, their pest and anti-odor inner kit filters are connected to the main filters with stainless steel chains, compatible with ceramic floor.
| SIZES | EXIT SIZES |
| 200 x 200 mm | DN50 |
| 300 x 300 mm | DN70 |
| 400 x 400 mm | DN100 |
| 500 x 500 mm | DN150 |
| 600 x 600 mm | DN200 |

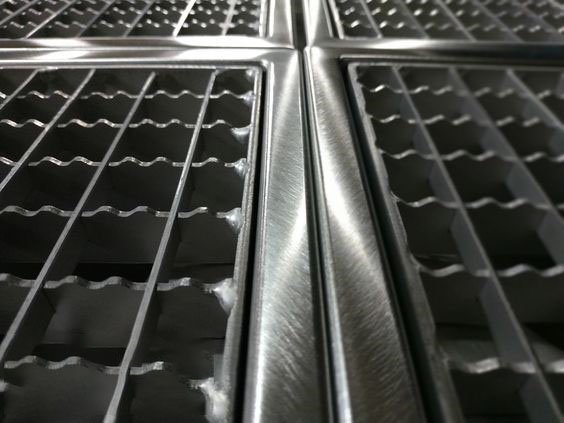

TOP GRATING TYPES
Plate Grating
Ladder Grating
Mesh Grating

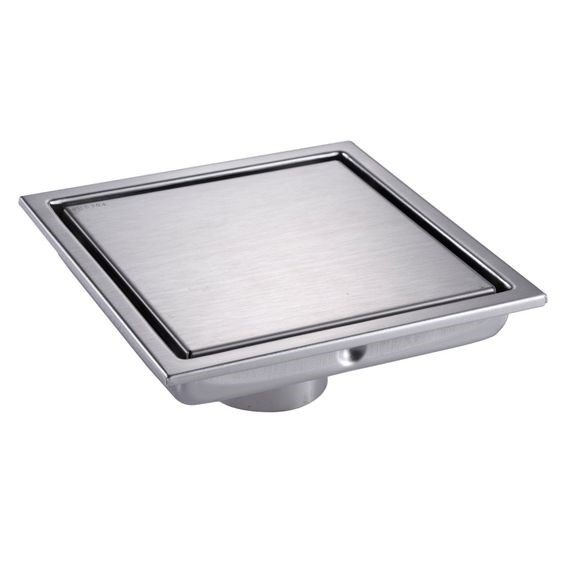

Closed Grating
EXIT DIRECTIONS
Bottom Exit
Side Exit
